YRT80-TV
Axial/radial roller bearing
Axial/radial bearings YRT, double direction, for screw mounting

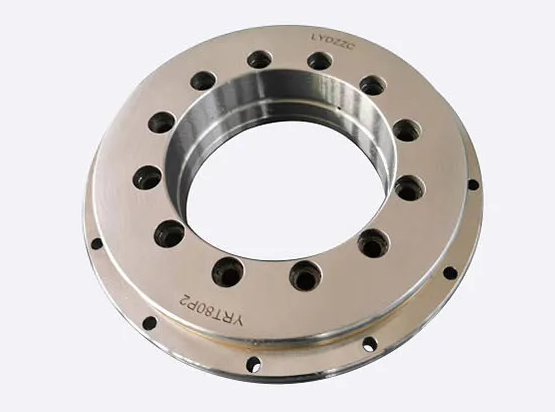

YRTC80-TV axial roller bearing

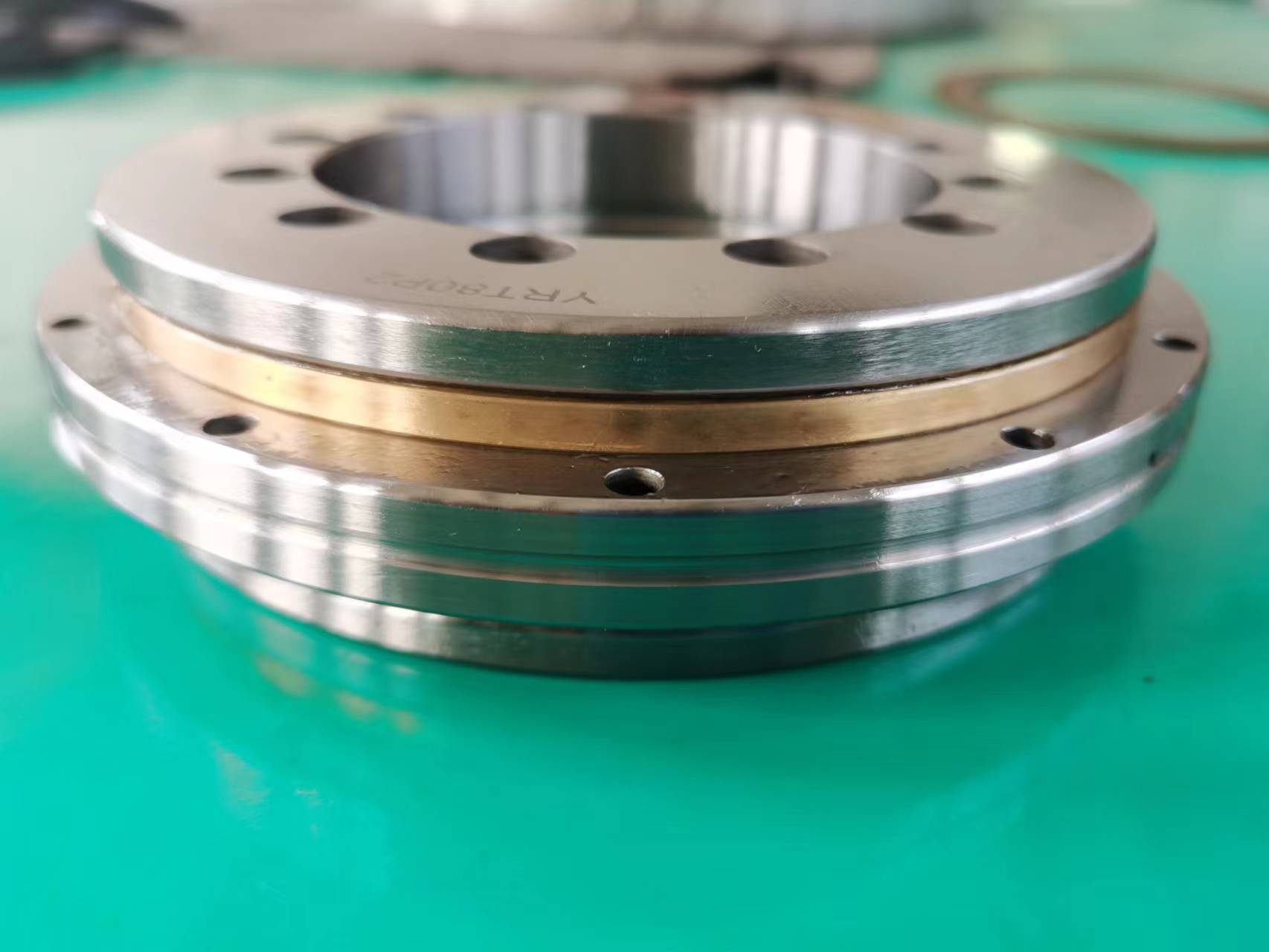

YRTC80-TV axial roller bearing consist of a thrust/radial seat ring, a thrust/radial shaft ring, a thrust washer, two needle roller cage assemblies and a set of radial cylindrical rollers. The seat ring and shaft ring have evenly distributed mounting screw holes. YRTC80-TV axial roller bearing has high axial and radial load capacity. High tilting stiffness and extremely high precision. Axial/radial roller bearing suitable for rotary tables, chucks and milling heads, as well as bearing configurations in measurements and experiments. screw mounting bearing also has high requirements for the matching equipment parts. The tightening torque of the mounting screws must be controlled during installation.
Screw mounting bearing fully equipped five -axis machining tool spinle.
Characteristics of LYDZC Luoyang East Axis YRTC rotary table bearings
1. High precision: The accuracy can reach P4 and P2 levels;
2. High rigidity: All bearings in this series are preloaded;
3. High load-bearing capacity: capable of withstanding axial loads, radial loads, and overturning loads.
4. High speed: YRTS series bearings can be applied to work environments with high speeds.
